Introduction
If you’ve got an unused 2.5-inch SATA SSD lying around, you can easily transform it into a portable USB SSD for a fraction of the price of buying a new external drive. This DIY project is beginner-friendly, cost-effective, and gives your old storage hardware a second life—perfect for backups, file transfers, or expanding your gaming console’s storage.
What You’ll Need
- 2.5-inch SATA SSD: Any standard laptop SSD will work (e.g., Samsung EVO, Crucial MX500).

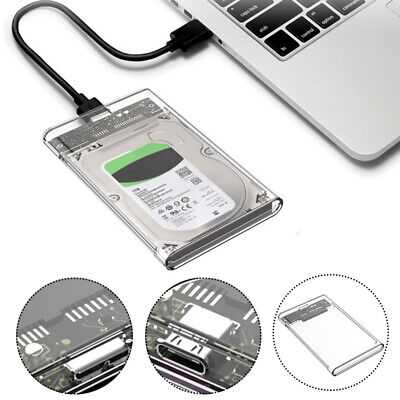

- 2.5-inch SATA-to-USB Enclosure: Choose an enclosure supporting USB 3.0 or higher for best speeds. Models from brands like Orico or PiBOX are affordable and widely available.
- USB Cable: Usually included with the enclosure.
- A computer: For setup and formatting.
SSD:
500GB: https://amzn.to/3TO3mHA
Enclosure: https://amzn.to/4etS8By
Step-by-Step Guide
1. Open the Enclosure
Most enclosures are tool-free and open by sliding or popping off the cover. Some may require a screwdriver.
2. Insert the SSD
Align the SSD’s SATA connectors with the enclosure’s SATA port. Gently push the drive into place until it’s fully seated.
“Align your SATA connector to your internal drive with the enclosure port and gently insert it.”
3. Secure and Close
Some enclosures provide foam pads or cushions to prevent movement. Place these if included, then close the enclosure securely.
4. Connect to Your Computer
Plug the enclosure into your computer using the supplied USB cable. Use a USB 3.0 port (usually blue) for optimal speed.
5. Format the SSD (If Needed)
- Windows:
- Press
Win + Xand select Disk Management. - Locate your new SSD, right-click, and choose New Simple Volume.
- Assign a drive letter and format (NTFS or exFAT for general use).
- Press
- Mac:
- Open Disk Utility, select the SSD, and click Erase to format (choose exFAT or Mac OS Extended).
6. Ready to Use!
Your DIY external SSD is now ready for file transfers, backups, or even as a portable game drive.
Performance and Use Cases
- Speed: Expect real-world transfer rates of 400–500 MB/s with USB 3.0 and a SATA SSD—much faster than traditional external hard drives, though not as fast as NVMe-based solutions.
- Compatibility: Works with Windows, Mac, Linux, PlayStation, Xbox, smart TVs, and more.
- Portability: Enclosures add drop and shock protection, making your SSD safer on the go.
Tips for Best Results
- Choose a UASP-Supported Enclosure: UASP (USB Attached SCSI Protocol) boosts performance by up to 30% over standard USB 3.0.
- Check Enclosure Size: Most support 7mm and 9.5mm thick SSDs.
- No Drivers Needed: These are plug-and-play; no software installation required.
- Reuse and Upgrade: This method works for both new and old SSDs—great for repurposing hardware from retired laptops.
Takeaway
Building your own USB SSD with a 2.5-inch SATA drive and an enclosure is one of the easiest and most cost-effective tech upgrades you can do. In just a few minutes, you’ll have a fast, reliable, and portable storage solution—without breaking the bank. This method also works on NVMe and m.2 SSD if you want a more portable and small drive.
NVMe SSD:
500GB: https://amzn.to/4eqk9dm
Enclosure: https://amzn.to/46lvkC0
